Auto Loader :

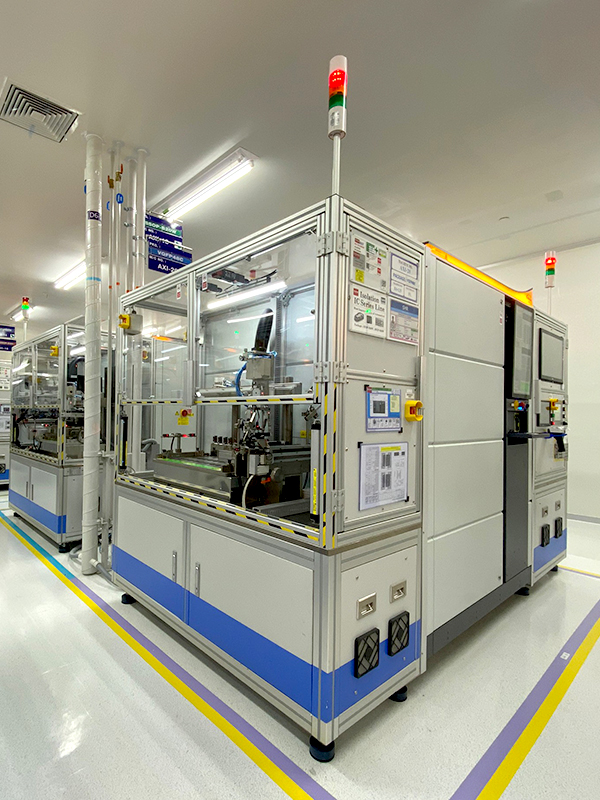

ALD62000 series Regular lead frame
Auto loader machine is machine auto loading finished lead frame with molded compound into X-ray machine and receive lead frame out from X-ray machine. The Auto load is consist Loader side and Unloader side.
ALD62000 series is model including marked reject unit*.
Inside ALD62000 series consist ALD62001 & ALD62002,
ALD62001 called Loader side
ALD62002 called Unloader side
ALD62000 series is model including marked reject unit*.
Inside ALD62000 series consist ALD62001 & ALD62002,
ALD62001 called Loader side
ALD62002 called Unloader side
Product Specification :
| STD Machine Configuration; |
| Dimension W x L x H ( 1605 x 600 x 1800mm) at Loader side |
| Dimension W x L x H ( 1605 x 800 x 1800mm) at Un-Loader side |
| Vision detection marked unit system* |
| Gripper method to pickup LF |
| SMEMA communicate system |
| Application Support; |
| Various lead frame width 55mm-85mm and length 180-220mm |
| LF thickness 0.10 to 1.2mm. |
| 10x magazines on tray at Loader side |
| 8x magazines for Good device and 2x magazines for Reject device at Unloader side |
Auto Loader :

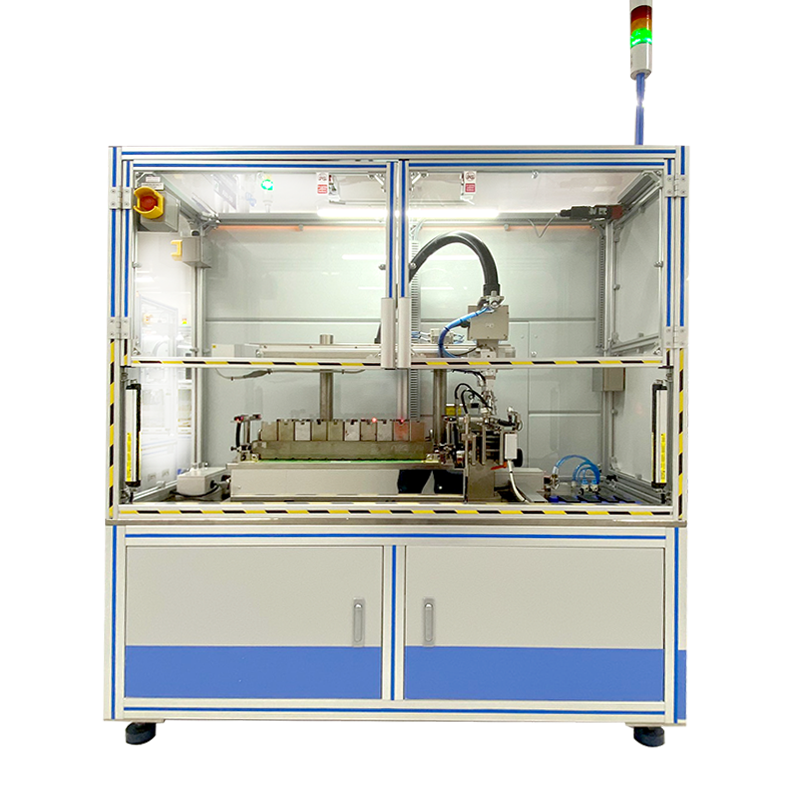

ALD62100 series SLIT cassette machine
ALD62100 series is new model launch in Y2022 with method Cassette magazine To Cassette magazine. The machine have included 2D scanner for reading QR code to loading strip mapping file from customer’s sever system*
Inside ALD62000 series consist ALD62101 & ALD62102,
ALD62101 called Loader side
ALD62102 called Unloader side
Inside ALD62000 series consist ALD62101 & ALD62102,
ALD62101 called Loader side
ALD62102 called Unloader side
Product Specification :
| STD Machine Configuration; |
| Dimension W x L x H ( 1605 x 600 x 1800mm) at Loader side |
| Dimension W x L x H ( 1605 x 600 x 1800mm) at Un-Loader side |
| Pusher LF |
| 2D scanner |
| SMEMA communicate system |
| Application Support; |
| Various lead frame width 55mm-85mm and length 180-220mm |
| LF thickness 0.10 to 1.2mm. |
| 10x Cassettes at Loader side |
| 10x Cassettes for Reject device at Unloader side |
Auto Loader :

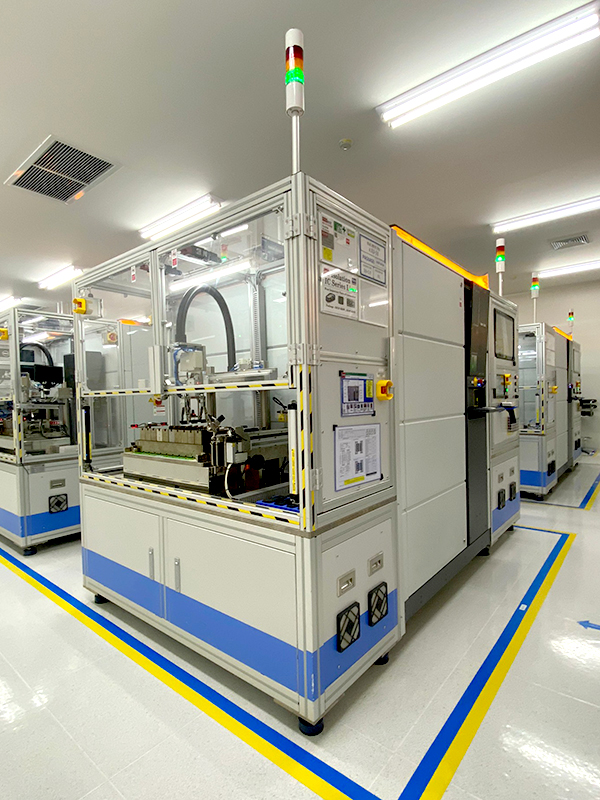

ALD63000 series Wide lead frame
ALD63000 series is model support wide lead frame and thin thickness and including marked reject unit with Laser mark system.
Inside ALD63000 series consist ALD63001 & ALD62002,
ALD63001 called Loader side
ALD63002 called Unloader side
Inside ALD63000 series consist ALD63001 & ALD62002,
ALD63001 called Loader side
ALD63002 called Unloader side
Product Specification :
| STD Machine Configuration; |
| Dimension W x L x H ( 1605 x 600 x 1800mm) at Loader side |
| Dimension W x L x H ( 1605 x 800 x 1800mm) at Un-Loader side |
| 2D scanner reading QR code |
| Gripper vacuum method to pickup LF |
| Application Support; |
| Various lead frame width 55mm-85mm and length 180-220mm |
| LF thickness 0.10 to 0.89mm. |
| 5x magazines on tray at Loader side |
| 4x magazines for Good device and 1x magazine for Reject device at Unloader side |
