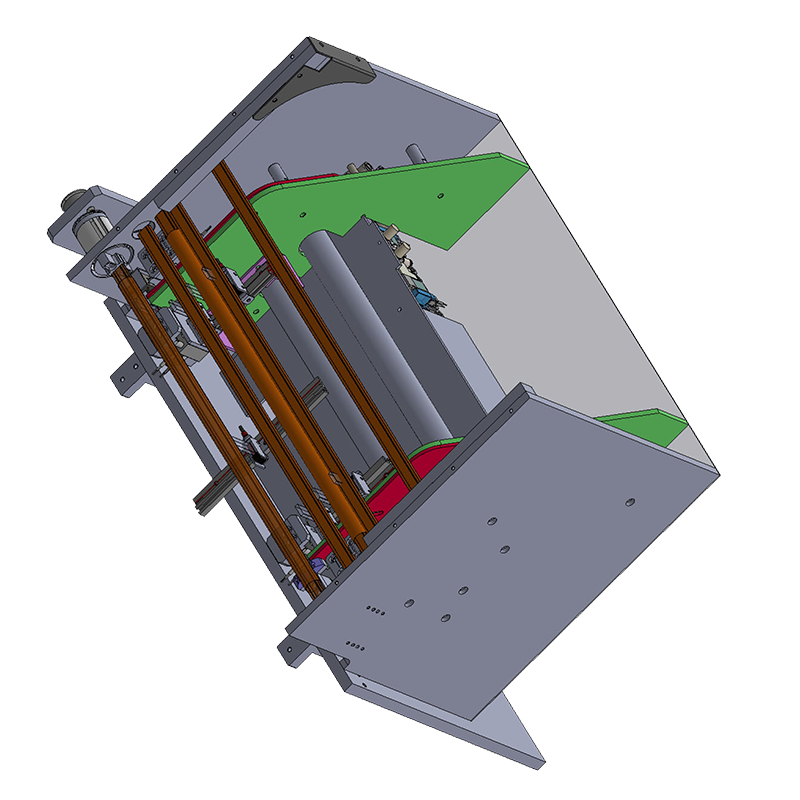

Product TSM
Tube System Machine Loader
The machine is auto load tube for IC device to tester machine. The design was improved from manual loading and giving high performance running.
The machine is flexible and support many tubes size based on customer required.
The machine is flexible and support many tubes size based on customer required.
Product Specification:
| Tube System Machine Loader | |
| Accumulate Speed | 500 mm/s |
| Accumulate Resolution | +0.02 mm |
| Lead frame Position Accuracy | -1 mm |
| Applicable Lead frame | W-23-45 mm L-150-190 mm T-0.1-0.8 mm |
| Applicable Magazine | W-30-50 mm L-2000 mm (Standard) H-1200 mm (standard) |
| Device Changeover | < 4 minutes |
| Package Changeover | < 10 minutes |

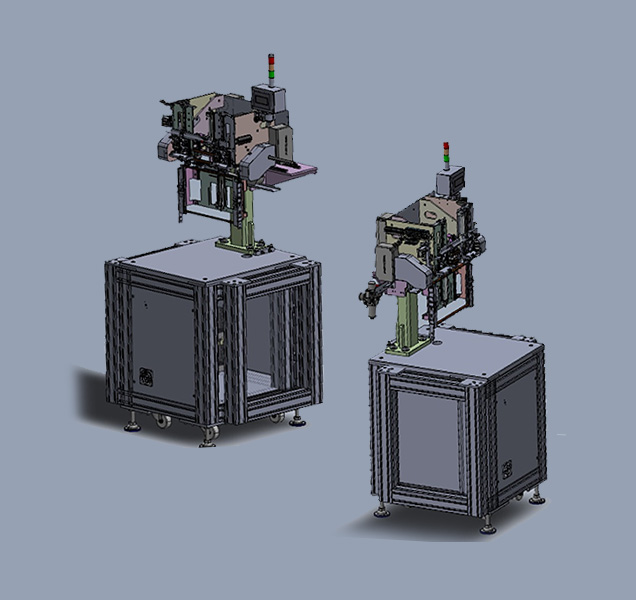

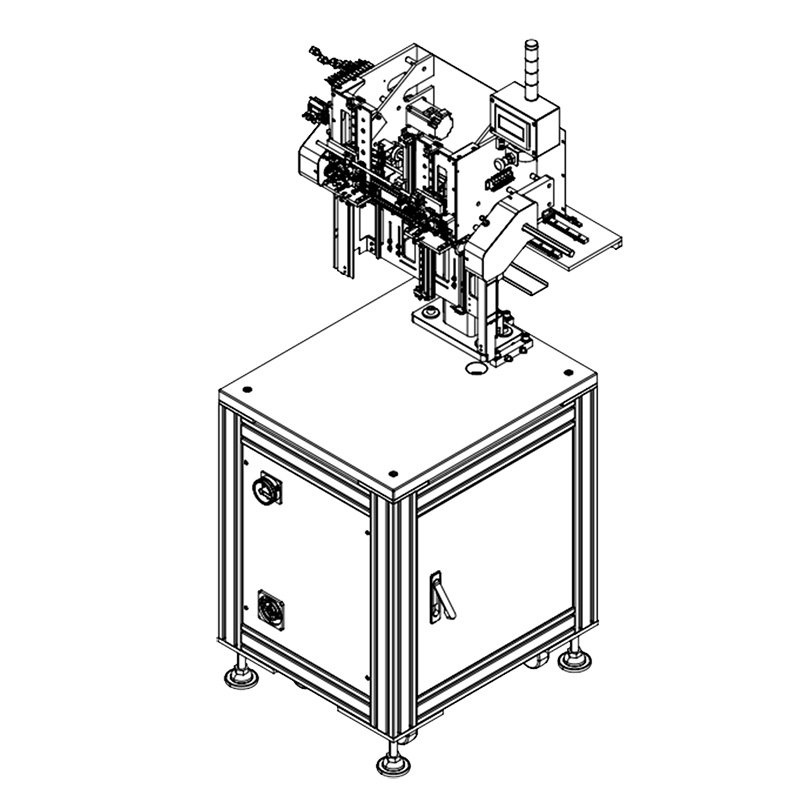

Product ATM
Auto Tube Machine
The machine is Auto loading tube at packing process. It’s able to support many tubes size based on customer requirement. The function is friendly and easy using.
Product Specification:
| Auto Tube Machine | |
| Accumulate Speed | 500 mm/s |
| Accumulate Resolution | +0.02 mm |
| Lead frame Position Accuracy | -1 mm |
| Applicable Lead frame | W-23-45 mm L-150-190 mm T-0.1-0.8 mm |
| Applicable Magazine | W-30-50 mm L-2000 mm (Standard) H-1200 mm (standard) |
| Device Changeover | < 4 minutes |
| Package Changeover | < 10 minutes |
